In this notebook, we will build a SageMaker Pipeline that automates the entire end to end process. Recall that we initially did all the steps in a manual way, and experimented as a data scientist: testing each segment, hands on, and determine for example, which transformations should be applied to the features, which algorithm should be selected, which hyperparamneters, etc. Now we will automate these steps, and perhaps pass on the responsibility to an ML Engineer or MLOps role.
Install required and/or update third-party libraries
[ ]:
!python -m pip install -Uq pip
!python -m pip install -q awswrangler==2.2.0 imbalanced-learn==0.7.0 sagemaker==2.41.0 boto3==1.17.70
Load stored variables
Run the cell below to load any prevously created variables. You should see a print-out of the existing variables. If you don’t see anything you may need to create them again or it may be your first time running this notebook.
[ ]:
%store -r
%store
Important: You must have run the previous sequential notebooks to retrieve variables using the StoreMagic command.
Import libraries
[ ]:
import json
import boto3
import pathlib
import sagemaker
import numpy as np
import pandas as pd
import awswrangler as wr
import demo_helpers
from sagemaker.xgboost.estimator import XGBoost
from sagemaker.workflow.pipeline import Pipeline
from sagemaker.workflow.steps import CreateModelStep
from sagemaker.sklearn.processing import SKLearnProcessor
from sagemaker.workflow.step_collections import RegisterModel
from sagemaker.workflow.steps import ProcessingStep, TrainingStep
from sagemaker.workflow.parameters import ParameterInteger, ParameterFloat, ParameterString
Set region and boto3 config
[ ]:
# You can change this to a region of your choice
import sagemaker
region = sagemaker.Session().boto_region_name
print("Using AWS Region: {}".format(region))
boto3.setup_default_session(region_name=region)
boto_session = boto3.Session(region_name=region)
s3_client = boto3.client("s3", region_name=region)
sagemaker_boto_client = boto_session.client("sagemaker")
sagemaker_session = sagemaker.session.Session(
boto_session=boto_session, sagemaker_client=sagemaker_boto_client
)
sagemaker_role = sagemaker.get_execution_role()
account_id = boto3.client("sts").get_caller_identity()["Account"]
[ ]:
# ======> Tons of output_paths
training_job_output_path = f"s3://{bucket}/{prefix}/training_jobs"
bias_report_output_path = f"s3://{bucket}/{prefix}/clarify-bias"
explainability_output_path = f"s3://{bucket}/{prefix}/clarify-explainability"
train_data_uri = f"s3://{bucket}/{prefix}/data/train/train.csv"
test_data_uri = f"s3://{bucket}/{prefix}/data/test/test.csv"
train_data_upsampled_s3_path = f"s3://{bucket}/{prefix}/data/train/upsampled/train.csv"
processing_dir = "/opt/ml/processing"
create_dataset_script_uri = f"s3://{bucket}/{prefix}/code/create_dataset.py"
pipeline_bias_output_path = f"s3://{bucket}/{prefix}/clarify-output/pipeline/bias"
deploy_model_script_uri = f"s3://{bucket}/{prefix}/code/deploy_model.py"
# ======> variables used for parameterizing the notebook run
flow_instance_count = 1
flow_instance_type = "ml.m5.4xlarge"
train_instance_count = 1
train_instance_type = "ml.m4.xlarge"
deploy_model_instance_type = "ml.m4.xlarge"

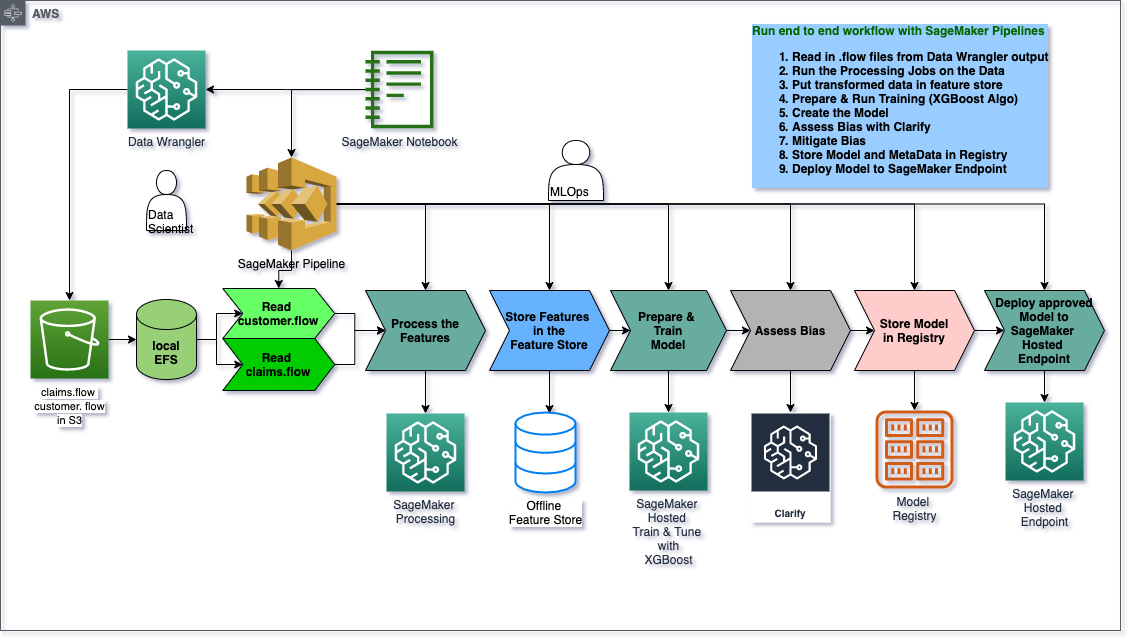

Architecture : Create a SageMaker Pipeline to Automate All the Steps from Data Prep to Model Deployment
SageMaker Pipeline
Now that youve manually done each step in our machine learning workflow, you can certain steps to allow for faster model experimentation without sacrificing transparncy and model tracking. In this section you will create a pipeline which trains a new model, persists the model in SageMaker and then adds the model to the registry.
Pipeline parameters
An important feature of SageMaker Pipelines is the ability to define the steps ahead of time, but be able to change the parameters to those steps at execution without having to re-define the pipeline. This can be achieved by using ParameterInteger, ParameterFloat or ParameterString to define a value upfront which can be modified when you call pipeline.start(parameters=parameters) later. Only certain parameters can be defined this way.
[ ]:
train_instance_param = ParameterString(
name="TrainingInstance",
default_value="ml.m4.xlarge",
)
model_approval_status = ParameterString(
name="ModelApprovalStatus", default_value="PendingManualApproval"
)
Step 1: Claims Data Wranger Preprocessing Step
Upload flow to S3
This will become an input to the first step and, as such, needs to be in S3.
[ ]:
s3_client.upload_file(
Filename="claims.flow", Bucket=bucket, Key=f"{prefix}/dataprep-notebooks/claims.flow"
)
claims_flow_uri = f"s3://{bucket}/{prefix}/dataprep-notebooks/claims.flow"
print(f"Claims flow file uploaded to S3")
Define the first Data Wrangler step’s inputs
[ ]:
with open("claims.flow", "r") as f:
claims_flow = json.load(f)
flow_step_inputs = []
# flow file contains the code for each transformation
flow_file_input = sagemaker.processing.ProcessingInput(
source=claims_flow_uri, destination=f"{processing_dir}/flow", input_name="flow"
)
flow_step_inputs.append(flow_file_input)
# parse the flow file for S3 inputs to Data Wranger job
for node in claims_flow["nodes"]:
if "dataset_definition" in node["parameters"]:
data_def = node["parameters"]["dataset_definition"]
name = data_def["name"]
s3_input = sagemaker.processing.ProcessingInput(
source=data_def["s3ExecutionContext"]["s3Uri"],
destination=f"{processing_dir}/{name}",
input_name=name,
)
flow_step_inputs.append(s3_input)
Define outputs for first Data Wranger step
[ ]:
claims_output_name = (
f"{claims_flow['nodes'][-1]['node_id']}.{claims_flow['nodes'][-1]['outputs'][0]['name']}"
)
flow_step_outputs = []
flow_output = sagemaker.processing.ProcessingOutput(
output_name=claims_output_name,
feature_store_output=sagemaker.processing.FeatureStoreOutput(feature_group_name=claims_fg_name),
app_managed=True,
)
flow_step_outputs.append(flow_output)
Define processor and processing step
[ ]:
# You can find the proper image uri by exporting your Data Wrangler flow to a pipeline notebook
# =================================
from sagemaker import image_uris
# Pulls the latest data-wrangler container tag, i.e. "1.x"
# The latest tested container version was "1.11.0"
image_uri = image_uris.retrieve(framework='data-wrangler',region=region)
print("image_uri: {}".format(image_uri))
flow_processor = sagemaker.processing.Processor(
role=sagemaker_role,
image_uri=image_uri,
instance_count=flow_instance_count,
instance_type=flow_instance_type,
max_runtime_in_seconds=86400,
)
output_content_type = "CSV"
# Output configuration used as processing job container arguments
claims_output_config = {
claims_output_name: {
"content_type": output_content_type
}
}
claims_flow_step = ProcessingStep(
name="ClaimsDataWranglerProcessingStep",
processor=flow_processor,
inputs=flow_step_inputs,
outputs=flow_step_outputs,
job_arguments=[f"--output-config '{json.dumps(claims_output_config)}'"],
)
Step 2: Customers Data Wrangler preprocessing step
[ ]:
s3_client.upload_file(
Filename="customers.flow", Bucket=bucket, Key=f"{prefix}/dataprep-notebooks/customers.flow"
)
claims_flow_uri = f"s3://{bucket}/{prefix}/dataprep-notebooks/customers.flow"
print(f"Customers flow file uploaded to S3")
[ ]:
with open("customers.flow", "r") as f:
customers_flow = json.load(f)
flow_step_inputs = []
# flow file contains the code for each transformation
flow_file_input = sagemaker.processing.ProcessingInput(
source=claims_flow_uri, destination=f"{processing_dir}/flow", input_name="flow"
)
flow_step_inputs.append(flow_file_input)
# parse the flow file for S3 inputs to Data Wranger job
for node in customers_flow["nodes"]:
if "dataset_definition" in node["parameters"]:
data_def = node["parameters"]["dataset_definition"]
name = data_def["name"]
s3_input = sagemaker.processing.ProcessingInput(
source=data_def["s3ExecutionContext"]["s3Uri"],
destination=f"{processing_dir}/{name}",
input_name=name,
)
flow_step_inputs.append(s3_input)
[ ]:
customers_output_name = (
f"{customers_flow['nodes'][-1]['node_id']}.{customers_flow['nodes'][-1]['outputs'][0]['name']}"
)
flow_step_outputs = []
flow_output = sagemaker.processing.ProcessingOutput(
output_name=customers_output_name,
feature_store_output=sagemaker.processing.FeatureStoreOutput(
feature_group_name=customers_fg_name
),
app_managed=True,
)
flow_step_outputs.append(flow_output)
output_content_type = "CSV"
# Output configuration used as processing job container arguments
customers_output_config = {
customers_output_name: {
"content_type": output_content_type
}
}
customers_flow_step = ProcessingStep(
name="CustomersDataWranglerProcessingStep",
processor=flow_processor,
inputs=flow_step_inputs,
outputs=flow_step_outputs,
job_arguments=[f"--output-config '{json.dumps(customers_output_config)}'"],
)
Step 3: Create Dataset and Train/Test Split
[ ]:
s3_client.upload_file(
Filename="create_dataset.py", Bucket=bucket, Key=f"{prefix}/code/create_dataset.py"
)
create_dataset_processor = SKLearnProcessor(
framework_version="0.23-1",
role=sagemaker_role,
instance_type="ml.m5.xlarge",
instance_count=1,
base_job_name="fraud-detection-demo-create-dataset",
sagemaker_session=sagemaker_session,
)
create_dataset_step = ProcessingStep(
name="CreateDataset",
processor=create_dataset_processor,
outputs=[
sagemaker.processing.ProcessingOutput(
output_name="train_data", source="/opt/ml/processing/output/train"
),
sagemaker.processing.ProcessingOutput(
output_name="test_data", source="/opt/ml/processing/output/test"
),
],
job_arguments=[
"--claims-feature-group-name",
claims_fg_name,
"--customers-feature-group-name",
customers_fg_name,
"--bucket-name",
bucket,
"--bucket-prefix",
prefix,
"--athena-database-name",
database_name,
"--claims-table-name",
claims_table,
"--customers-table-name",
customers_table,
"--region",
region,
],
code=create_dataset_script_uri,
depends_on=[claims_flow_step.name, customers_flow_step.name],
)
Step 4: Train XGBoost Model
In this step we use the ParameterString train_instance_param defined at the beginning of the pipeline.
[ ]:
hyperparameters = {
"max_depth": "3",
"eta": "0.2",
"objective": "binary:logistic",
"num_round": "100",
}
xgb_estimator = XGBoost(
entry_point="xgboost_starter_script.py",
output_path=training_job_output_path,
code_location=training_job_output_path,
hyperparameters=hyperparameters,
role=sagemaker_role,
instance_count=train_instance_count,
instance_type=train_instance_param,
framework_version="1.0-1",
)
train_step = TrainingStep(
name="XgboostTrain",
estimator=xgb_estimator,
inputs={
"train": sagemaker.inputs.TrainingInput(
s3_data=create_dataset_step.properties.ProcessingOutputConfig.Outputs[
"train_data"
].S3Output.S3Uri
)
},
)
Step 5: Model Pre-Deployment Step
[ ]:
model = sagemaker.model.Model(
name="fraud-detection-demo-pipeline-xgboost",
image_uri=train_step.properties.AlgorithmSpecification.TrainingImage,
model_data=train_step.properties.ModelArtifacts.S3ModelArtifacts,
sagemaker_session=sagemaker_session,
role=sagemaker_role,
)
inputs = sagemaker.inputs.CreateModelInput(instance_type="ml.m4.xlarge")
create_model_step = CreateModelStep(name="ModelPreDeployment", model=model, inputs=inputs)
Step 6: Run Bias Metrics with Clarify
Clarify configuration
[ ]:
bias_data_config = sagemaker.clarify.DataConfig(
s3_data_input_path=create_dataset_step.properties.ProcessingOutputConfig.Outputs[
"train_data"
].S3Output.S3Uri,
s3_output_path=pipeline_bias_output_path,
label="fraud",
dataset_type="text/csv",
)
bias_config = sagemaker.clarify.BiasConfig(
label_values_or_threshold=[0],
facet_name="customer_gender_female",
facet_values_or_threshold=[1],
)
analysis_config = bias_data_config.get_config()
analysis_config.update(bias_config.get_config())
analysis_config["methods"] = {"pre_training_bias": {"methods": "all"}}
clarify_config_dir = pathlib.Path("config")
clarify_config_dir.mkdir(exist_ok=True)
with open(clarify_config_dir / "analysis_config.json", "w") as f:
json.dump(analysis_config, f)
s3_client.upload_file(
Filename="config/analysis_config.json",
Bucket=bucket,
Key=f"{prefix}/clarify-config/analysis_config.json",
)
Clarify processing step
[ ]:
clarify_processor = sagemaker.processing.Processor(
base_job_name="fraud-detection-demo-clarify-processor",
image_uri=sagemaker.clarify.image_uris.retrieve(framework="clarify", region=region),
role=sagemaker.get_execution_role(),
instance_count=1,
instance_type="ml.c5.xlarge",
)
clarify_step = ProcessingStep(
name="ClarifyProcessor",
processor=clarify_processor,
inputs=[
sagemaker.processing.ProcessingInput(
input_name="analysis_config",
source=f"s3://{bucket}/{prefix}/clarify-config/analysis_config.json",
destination="/opt/ml/processing/input/config",
),
sagemaker.processing.ProcessingInput(
input_name="dataset",
source=create_dataset_step.properties.ProcessingOutputConfig.Outputs[
"train_data"
].S3Output.S3Uri,
destination="/opt/ml/processing/input/data",
),
],
outputs=[
sagemaker.processing.ProcessingOutput(
source="/opt/ml/processing/output/analysis.json",
destination=pipeline_bias_output_path,
output_name="analysis_result",
)
],
)
### Step 7: Register Model In this step you will use the ParameterString
model_approval_statusdefined at the outset of the pipeline code.
[ ]:
model_metrics = demo_helpers.ModelMetrics(
bias=sagemaker.model_metrics.MetricsSource(
s3_uri=clarify_step.properties.ProcessingOutputConfig.Outputs[
"analysis_result"
].S3Output.S3Uri,
content_type="application/json",
)
)
register_step = RegisterModel(
name="XgboostRegisterModel",
estimator=xgb_estimator,
model_data=train_step.properties.ModelArtifacts.S3ModelArtifacts,
content_types=["text/csv"],
response_types=["text/csv"],
inference_instances=["ml.t2.medium", "ml.m5.xlarge"],
transform_instances=["ml.m5.xlarge"],
model_package_group_name=mpg_name,
approval_status=model_approval_status,
model_metrics=model_metrics,
)
### Step 8: Deploy Model
[ ]:
s3_client.upload_file(
Filename="deploy_model.py", Bucket=bucket, Key=f"{prefix}/code/deploy_model.py"
)
deploy_model_processor = SKLearnProcessor(
framework_version="0.23-1",
role=sagemaker_role,
instance_type="ml.t3.medium",
instance_count=1,
base_job_name="fraud-detection-demo-deploy-model",
sagemaker_session=sagemaker_session,
)
deploy_step = ProcessingStep(
name="DeployModel",
processor=deploy_model_processor,
job_arguments=[
"--model-name",
create_model_step.properties.ModelName,
"--region",
region,
"--endpoint-instance-type",
deploy_model_instance_type,
"--endpoint-name",
"xgboost-model-pipeline-0120",
],
code=deploy_model_script_uri,
)
Combine the Pipeline Steps and Run
Though easier to reason with, the parameters and steps don’t need to be in order. The pipeline DAG will parse it out properly.
[ ]:
pipeline_name = f"FraudDetectDemo"
%store pipeline_name
pipeline = Pipeline(
name=pipeline_name,
parameters=[train_instance_param, model_approval_status],
steps=[
claims_flow_step,
customers_flow_step,
create_dataset_step,
train_step,
create_model_step,
clarify_step,
register_step,
deploy_step,
],
)
Submit the pipeline definition to the SageMaker Pipeline service
Note: If an existing pipeline has the same name it will be overwritten.
[ ]:
pipeline.upsert(role_arn=sagemaker_role)
View the entire pipeline definition
Viewing the pipeline definition will all the string variables interpolated may help debug pipeline bugs. It is commented out here due to length.
[ ]:
json.loads(pipeline.describe()['PipelineDefinition'])
Run the pipeline
Note this will take about 23 minutes to complete. You can watch the progress of the Pipeline Job on your SageMaker Studio Components panel
[ ]:
# Special pipeline parameters can be defined or changed here
parameters = {"TrainingInstance": "ml.m5.xlarge"}
[ ]:
start_response = pipeline.start(parameters=parameters)
[ ]:
start_response.wait()
start_response.describe()

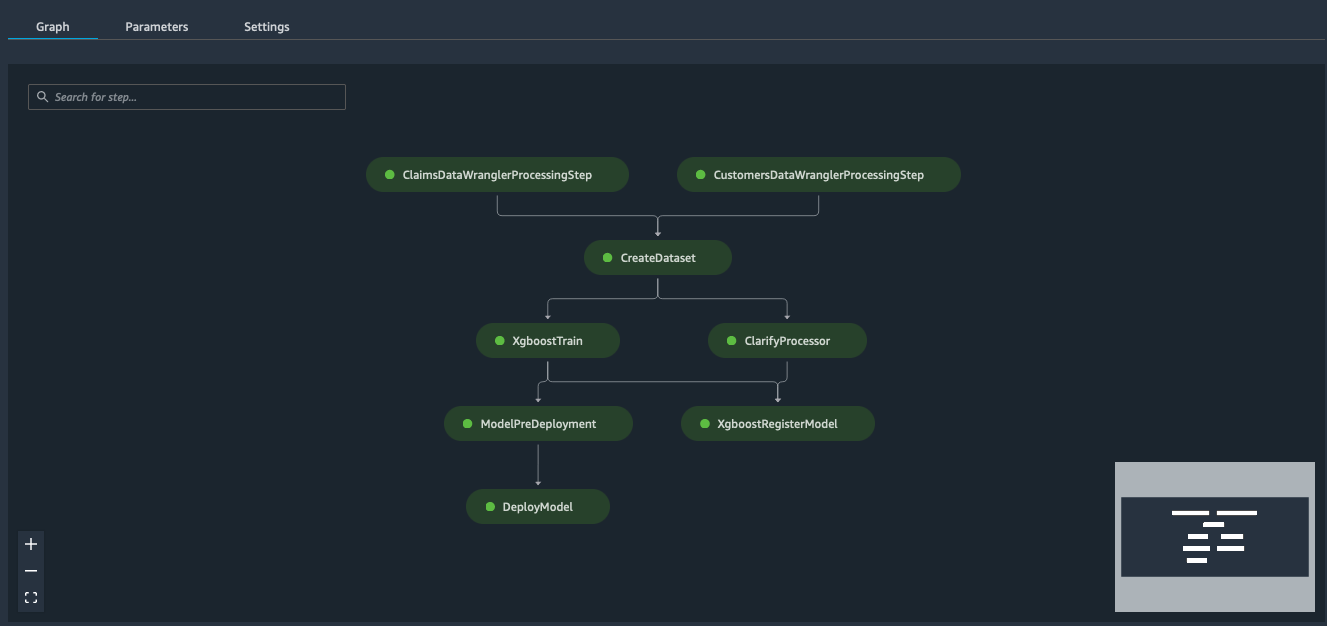

after completion it will look something like this
## Clean up
overview
After running the demo, you should remove the resources which were created. You can also delete all the objects in the project’s S3 directory by passing the keyword argument delete_s3_objects=True.
[ ]:
from demo_helpers import delete_project_resources
[ ]:
"""
delete_project_resources(
sagemaker_boto_client=sagemaker_boto_client,
endpoint_name=endpoint_name,
pipeline_name=pipeline_name,
mpg_name=mpg_name,
prefix=prefix,
delete_s3_objects=False,
bucket_name=bucket)
"""
